THE SYSTEM
Every room. One ecosystem.
One central ARVE sensor and small compact satellites create a connected view of your indoor environment
Placed across different rooms and zones, they continuously capture what is happening throughout the space.
Rather than relying on a single measurement point.
1 CENTRAL SENSOR · MULTIPLE SATELLITES · ONE COMPLETE VIEW
WHAT ARVE SEES
What you can't see. Made visible.
DUST & FINE PARTICLES
The dust you can't see matters most.
Fine particles can penetrate deep into the lungs.
PM 2.5 can even cross the lung barrier and enter the bloodstream.
Measured: PM0.5 · PM1 · PM2.5 · PM4 · PM10
AIRBORNE CHEMICALS
What's in the air isn't always dust.
Detects volatile organic compounds released by materials, cleaning products, furniture, toys, plastic and everyday activities.
Measured: TVOC
CARBON DIOXIDE
Know when a room needs fresh air.
CO₂ levels help reveal insufficient ventilation and the impact of occupancy.
Measured: CO₂
TEMPERATURE
Comfort, continuously monitored.
HUMIDITY
Know when the air becomes too dry or too humid.
Real-time air quality. Wherever it matters.
BEYOND AIR QUALITY
Don't just measure the air.
Know the risk.

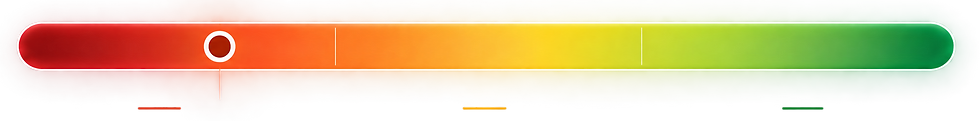

Virus Transmission Risk Index - VTRI
Most air-quality systems stop at numbers. ARVE goes further.
VTRI combines real-time indoor air data with room and occupancy conditions
to show the current risk of airborne virus transmission.
HIGH RISK
Poor ventilation
or elevated
pollutant levels
ELEVATED RISK
Conditions indicate
increased transmission risk
LOW RISK
Well-ventilated conditions
with low pollutant levels
Based on CERN CAiMIRA methodology
CAiMIRA technology also powers WHO / CERN ARIA
THE BRAIN OF SWISS-AIR AUTOPILOT
Seeing the air is only the beginning.
Knowing what's happening becomes powerful when the system can act on it.
As the intelligence behind Swiss-Air Autopilot, ARVE turns real-time air-quality data
into the information connected air-treatment technologies need to respond to changing conditions.
SEE → ACT → VERIFY
ARVE → AIR TREATMENT → ARVE
And after the system responds, ARVE keeps measuring the result.
So you don't have to assume the air improved.
You can see it. In real time. 24/7.
THE DEVICE SETUP
From unboxing to live data. In minutes.
1
Download the ARVE app
Get the ARVE app from the App Store to begin setting up your air quality monitoring system.
2
Create your Account
Sign up to create a personalized ARVE account. This will allow you to access your real-time air quality data and manage your devices remotely.
3
Connect to WiFi
Ensure your ARVE device is powered on, and connect it to a stable Wi-Fi network. This will enable seamless, real-time transmission of air quality data to your app.
4
Finalize Configuration
Follow the on-screen instructions in the app to complete the setup. Once configured, you will begin monitoring your indoor air quality with precise, real-time data.

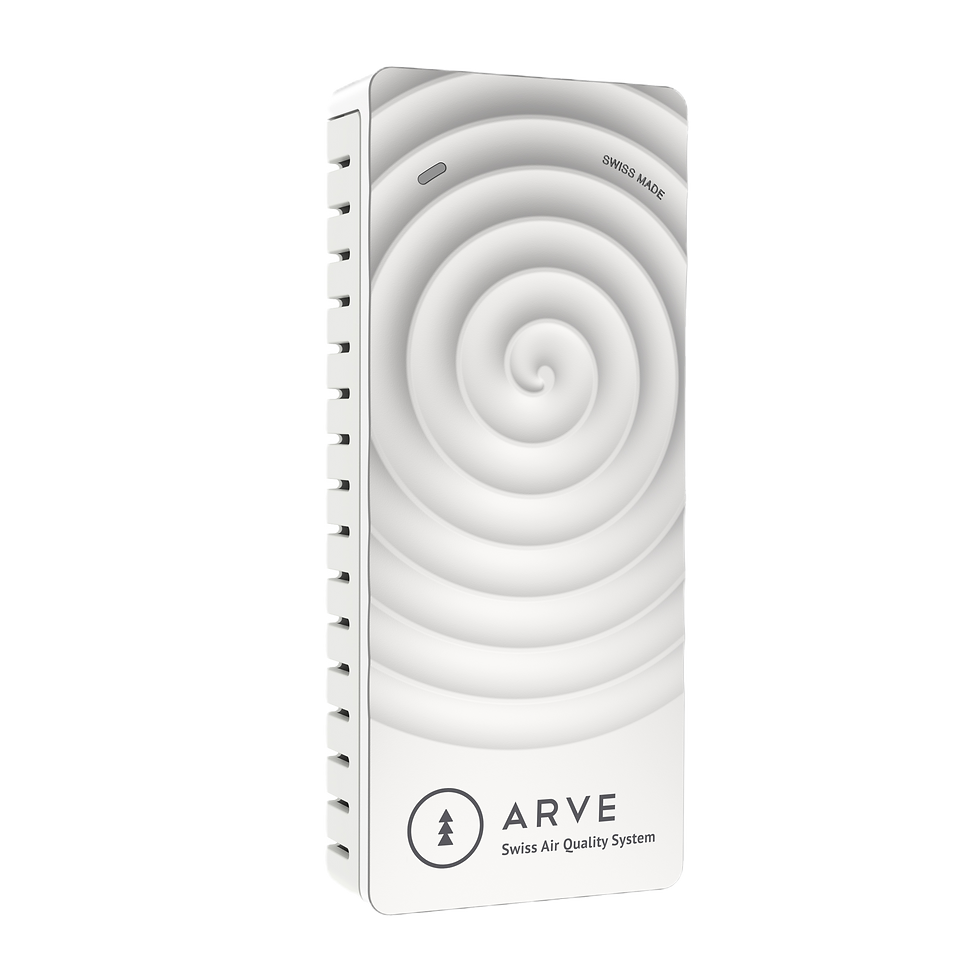

For smart Indoor Air
Arve Sense Pro incl. 5 Satellites
See your air Understand your space.
24/7
Real-Time Monitoring
10 sec
Data Updates
Real-Time Monitoring
ARVE continuously monitors indoor air quality around the clock
Data Updates
Air-quality data is logged and transmitted every 10 seconds.
Measurements
Particle Sizes
Particle Sensor Technology
CO₂ Sensor Technology
TVOC Sensor Technology
Data Logging
Data Transmission
Connectivity
Interface
Installation
Onboard Memory
Dimensions
Weight
Power Consumption
Power Supply
Fine Particles · CO₂ · TVOC · Temperature · Humidity
PM0.5 · PM1 · PM2.5 · PM4 · PM10
Optical Laser Scattering
NDIR Dual-Channel
CMOS Multi-Pixel Gas Sensor
Every 10 sec
Every 10 sec
WiFi · Bluetooth
Web Dashboard · ARVE Air App
Wall-Mounted · Tabletop
16 MB
143.5 × 60 × 27.5 mm
165 g incl. USB Cable & Holder
1.6 W
5 VDC · 1 A
Data Sheet
From AED 2,100
incl. VAT
